Series 33 - IP65 Hand Held ABS Instrument Cases

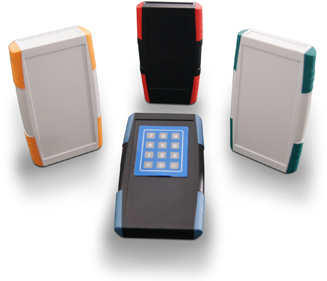

IP65 Hand Held ABS Instrument Cases (Series 33)
Ergonomically designed hand held ABS enclosure that is snap-fit and screw assembly. The main enclosure is manufactured from robust 3mm thick ABS whilst the separately ordered colour coded corners are manufactured in Polypropylene coated with a TPE non-slip material for more positive handling. An optional EPDM gasket to improve sealing to IP65 is also available and specific models in the range also have an integrated battery compartment which has a screw fixing cover. These products are particularly suitable for housing electronics for remote control or instrumentation applications that require a tough and resilient product.
FEATURES
- Ergonomically designed for more comfortable use.
- Manufactured in tough 3mm thick ABS material.
- Separate battery compartment and cover on specific models in the range.
- Snap fit and screw assembly.
- Gasket option to increase IP rating to IP65.
- Colour coded non-slip corners available separately.
- Temperature resistant to +85°C.
SPECIFICATIONS
Click on the product codes below to see individual product details:
Product Code | Description | Integrated Battery Compartment with Separate Cover | IP Rating | Base Colour | Lid Colour | Enclosure Material | H (mm) |
W (mm) |
D (mm) |
Temp Rating |
33133301 | Robust hand held ABS Enclosure. Supplied as a basic shell the product can be colour coded for specific applications by fitment of the separately ordered colour coded corners. | No | IP60 (Increased to IP65 by fitting EPDM gasket seal 33070045 | Black RAL 9004 | Black RAL 9004 | ABS | 145 | 95 | 25 | 0°C to +85°C |
33133302 | Yes | 145 | 95 | 35 | 0°C to +85°C | |||||
33133303 | No | 185 | 110 | 25 | 0°C to +85°C | |||||
33133304 | Yes | 185 | 110 | 35 | 0°C to +85°C | |||||
33133305 | No | 200 | 120 | 25 | 0°C to +85°C | |||||
33133306 | Yes | 200 | 120 | 35 | 0°C to +85°C | |||||
33133311 | No | Black RAL 9004 | Black RAL 9004 | ABS | 145 | 95 | 25 | 0°C to +85°C | ||
33133312 | Yes | 145 | 95 | 35 | 0°C to +85°C | |||||
33133313 | No | 185 | 110 | 25 | 0°C to +85°C | |||||
33133314 | Yes | 185 | 110 | 35 | 0°C to +85°C | |||||
33133315 | No | 200 | 120 | 25 | 0°C to +85°C | |||||
33133316 | Yes | 200 | 120 | 35 | 0°C to +85°C |
ACCESSORIES
Click on the product codes below to see individual product details:
Product Code | Description | Base Colour | Enclosure Material | Temp Rating | Comments |
33070045 | IP Sealing Gasket | EPDM |
0°C to +85°C |
Suitable for fitting to all Series 33 hand held Enclosures which will increase IP rating to IP65. |
|
33133225 | Blue corner section | Blue RAL 5007 | Polypropylene covered with TPE non-slip material |
Supplied in packs of 4 pcs. | |
33133325 | Green corner section | Green RAL 6026 | |||
33133425 | Red corner section | Red RAL 3020 | |||
33133525 | Orange corner section | Orange RAL 2003 | |||
33133625 | Black corner section | Black RAL 9004 | |||
33133725 | Yellow corner section | Yellow RAL 1021 | |||
33133825 | Grey corner section | Grey RAL 6026 | |||
33133235 | Blue corner section | Blue RAL 5007 | |||
33133335 | Green corner section | Green RAL 6026 | |||
33133435 | Red corner section | Red RAL 3020 | |||
33133535 | Orange corner section | Orange RAL 2003 | |||
33133635 | Black corner section | Black RAL 9004 | |||
33133735 | Yellow corner section | Yellow RAL 1021 | |||
33133835 | Grey corner section | Grey RAL 6026 |
