Hylec-APL
    Rectangular Enclosures/Junction Boxes

    Rectanglar Enclosures and Junction Boxes

    Overview

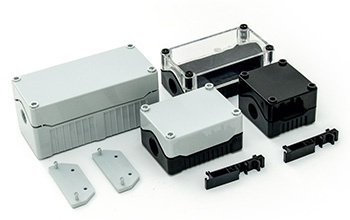

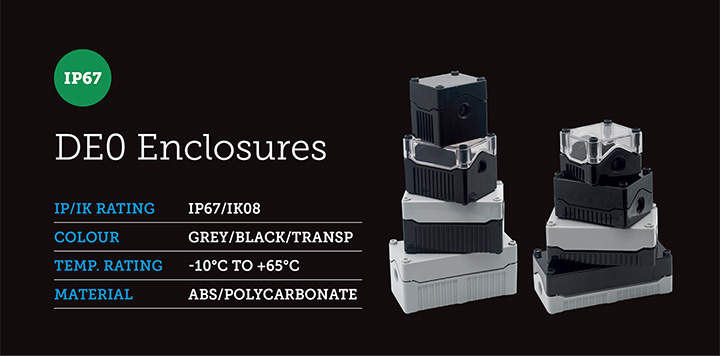

    Available in either ABS plastic (UL94-HB) or polycarbonate (UL94-V0) and in standard or deep bases, the DE0 range is rated to IP67.
    The range is available with a unique snap-on DIN rail and flange brackets and is suitable for enclosing printed circuit boards vertically (via mounting slots) or horizontally.
    The enclosures come in four different sizes with an option for standard or deep bases. The captive plastic screws ensure they will not be dropped/lost during fixing.
    The DE0 range is also available with pre-drilled holes for control switches, see the accessories page.

     Rectanglar Enclosures and Junction Boxes

    Features

    IP67 & IK08 Rated
    Flame Retardant ABS to UL94-HB
    Also Available in Polycarbonate UL94-V0 • Captive Screws in Lid
    Available in a Combination of Grey, Black and Transparent Colours
    Unique Snap-On Din Rail and Flange Brackets Available
    Complete with M20 Cable Knock-Outs
    W (mm)H (mm)Standard Base
    D (mm)
    Deep Base
    D (mm)
    73805378
    106805378
    139805378
    172805378
