Nickel Plated Brass PG Cable Glands

info« prev 1 2 3 4 5...14 15 next »

IP68 PERFECT NICKEL PLATED BRASS CABLE GLAND

Features

Measurement: PG

Rated up to IP68

Made From Nickel Plated Brass

Temperature Range of -20°C to +100°C

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.007	PG7	24	5	3-6.5
50.009	PG9	29	5	4-8
50.011	PG11	29.5	6	5-10
50.013	PG13.5	31.5	6.5	6-12
50.016	PG16	31.5	6.5	10-14
50.021	PG21	34	7	13-18
50.029	PG29	39	8	18-25
50.036	PG36	45	9	22-32
50.042	PG42	49	10	30-38
50.048	PG48	52	10	34-44

IP68 PERFECT NICKEL PLATED BRASS WITH REDUCING INSERT

Features

Measurement: PG

Rated up to IP68

Made From Nickel Plated Brass

Temperature Range of -20°C to +100°C

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.007 R	PG7	24	5	2-5
50.009 R	PG9	29	5	2-6
50.011 R	PG11	29.5	6	3-7
50.013 R	PG13.5	31.5	6.5	5-9
50.016 R	PG16	31.5	6.5	7-12
50.021 R	PG21	34	7	9-16
50.029 R	PG29	39	8	12-20
50.036 R	PG36	45	9	20-26

IP68 PERFECT NICKEL PLATED BRASS EMC CABLE GLAND

Features

Measurement: PG

Rated up to IP68

Made From Nickel Plated Brass

Temperature Range of -20°C to +100°C

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.007/EMV	PG7	24	5	3-6.5
50.009/EMV	PG9	29	5	4-8
50.011/EMV	PG11	29.5	6	5-10
50.013/EMV	PG13.5	31.5	6.5	6-12
50.016/EMV	PG16	31.5	6.5	10.14
50.021/EMV	PG21	34	7	13-18
50.029/EMV	PG29	39	8	18-25
50.036/EMV	PG36	45	9	22-32
50.042/EMV	PG42	49	10	30-38
50.048/EMV	PG48	52	10	34-44

IP68 PERFECT NICKEL PLATED BRASS METRIC IP68 ACCESSORIES & LOCKNUTS

Measurement: PG

Temperature Range of -60°C to +200°C

Product Code	Size	H (mm)
207 M	PG7	2.8
209 M	PG9	2.8
211 M	PG11	3
213 M	PG13.5	3
216 M	PG16	3
221 M	PG21	3.5
229 M	PG29	4
236 M	PG36	5
242 M	PG42	5
248 M	PG48	5.5

EMC CUTTING LOCKNUTS

Measurement: PG

Colour: Silver

Temperature Range of -60°C to +200°C

Product Code	Size	H (mm)	L (mm)
207 MPOT	PG7	4.7	3.7
209 MPOT	PG9	4.7	3.7
211 MPOT	PG11	4.7	3.7
213 MPOT	PG13.5	4.7	3.7
216 MPOT	PG16	4.7	3.7
221 MPOT	PG21	5.2	4.2
229 MPOT	PG29	5.7	4.7
236 MPOT	PG36	6	5
242 MPOT	PG42	6	5
248 MPOT	PG48	6.5	5.5

IP54 SCREW PLUG WITH SLOT TOP

Measurement: PG

Rated IP54

Temperature Range of -60°C to +200°C

Product Code	Size	H (mm)	L (mm)	Ø (mm)
1007 M	PG7	6	5	14
1009 M	PG9	9	6	17
1011 M	PG11	9	6	20
1013 M	PG13.5	9.5	6.5	22
1016 M	PG16	9.5	6.5	24
1021 M	PG21	11	7	30
1029 M	PG29	12	8	39
1036 M	PG36	15	9	50
1042 M	PG42	16	10	57
1048 M	PG48	16	10	64

IP68 SCREW PLUG WITH “O” RING AND SLOT TOP

Measurement: PG

Rated IP54

Temperature Range of -30°C to +100°C

Product Code	Size	H (mm)	L (mm)	Ø (mm)
1007 MG	PG7	7	4.5	16
1009 MG	PG9	8	4.5	19
1011 MG	PG11	8	4.5	22
1013 MG	PG13.5	10	6	24
1016 MG	PG16	10	6	26
1021 MG	PG21	10	6.5	32
1029 MG	PG29	12	8	39
1036 MG	PG36	15	9	50
1042 MG	PG42	16	10	57
1048 MG	PG48	16	10	64

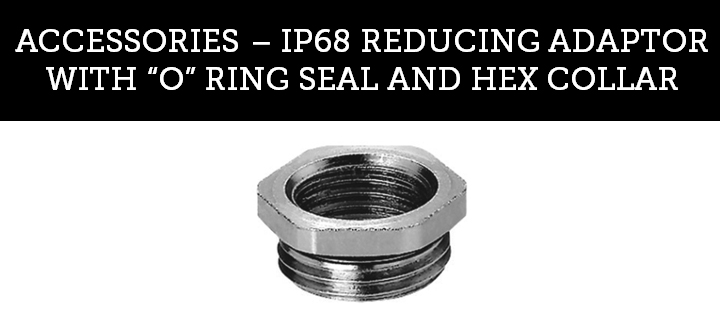

IP68 REDUCING ADAPTOR WITH “O” RING SEAL AND HEX COLLAR

Measurement: PG

Product Code	Size	H (mm)	L (mm)
60907/OM	PG9PG7	8.5	6
61107/OM	PG1PG7	8.5	6
61109/OM	PG11PG9	8.5	6
61307/OM	PG13PG7	9.5	6.5
61309/OM	PG13PG9	9.5	6.5
61311/OM	PG13PG11	9.5	6.5
61607/OM	PG16PG7	9.5	6.5
61609/OM	PG16PG9	9.5	6.5
61611/OM	PG16PG11	9.5	6.5
61613/OM	PG16PG13	9.5	6.5
62111/OM	PG21PG11	10	7
62113/OM	PG21PG13	10	7
62116/OM	PG21PG16	10	7
62916/OM	PG29PG16	11.5	8
62921/OM	PG29PG21	11.5	8
63621/OM	PG36PG21	12.5	9
63629/OM	PG36PG29	12.5	9
64236/OM	PG42PG36	14	10

MULTI-HOLE SEALING INSERTS

Suitable For

Perfect series 50.6xx M

Perfect series 50.1xx M

Features

Measurement: PG

Material: Evoprene TPE

Temperature Range of -30°C to +100°C

Product Code ^*	Size	L (mm)	H (mm)	ØC (mm)
WJ-D 9/3x2	PG9	7.5	3x2	10.6
WJ-D 9/3x3.5	PG9	7.5	3x3.5	10.6
WJ-D 11/2x5	PG11	8.5	2x5	13.3
WJ-D 11/3x3.5	PG11	8.5	3x3.5	13.3
WJ-D 11/3x4	PG11	8.5	3x4	13.3
WJ-D 13/2x5	PG13.5	8.5	2x5	15.3
WJ-D 13/2x6	PG13.5	8.5	2x6	15.3
WJ-D 13/3x4	PG13.5	8.5	3x4	15.3
WJ-D 16/3x6	PG16	9	3x6	17.4
WJ-D 16/3x6.5	PG16	9	3x6.5	17.4
WJ-D 16/3x7	PG16	9	3x7	17.4
WJ-D 16/4x4	PG16	9	4x4	17.4
WJ-D 21/3x7	PG21	11	3x7	22.2
WJ-D 21/3x8	PG21	11	3x8	22.2
WJ-D 21/4x5	PG21	11	4x5	22.2
WJ-D 21/4x6.5	PG21	11	4x6.5	22.2
WJ-D 29/6x5	PG29	13	6x5	29.8
WJ-D 29/6x7.5	PG29	13	6x7.5	29.8
