Nylon PG Cable Glands

info« prev 1 2 3 4 5...18 19 next »

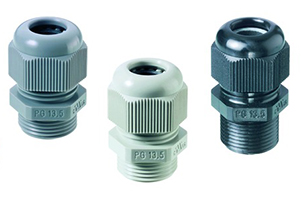

IP68 NYLON PERFECT CABLE GLANDS

Features

Measurement: PG

Rated to IP68

Temperature Range of -20°C to +100°C

50.0xx range offers integrated anchorage and protection against twisting.

Quick & easy installation

No special tools needed

Material: Nylon

Colour: Grey RAL 7001

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.007 PA	PG7	30.5	8	3-6.5
50.009 PA	PG9	34	8	4-8
50.011 PA	PG11	37	8	5-10
50.013 PA	PG13.5	39	9	6-12
50.016 PA	PG16	42.5	10	10-14
50.021 PA	PG21	47.5	11	13-18
50.029 PA	PG29	53	11	18-25
50.036 PA	PG36	61	13	22-32
50.042 PA	PG42	65	13	30-38
50.048 PA	PG48	67	14	34-44

Material: Nylon

Colour: Grey RAL 7035

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.007 PA7035	PG7	30.5	8	3-6.5
50.009 PA7035	PG9	34	8	4-8
50.011 PA7035	PG11	37	8	5-10
50.013 PA7035	PG13.5	39	9	6-12
50.016 PA7035	PG16	42.5	10	10-14
50.021 PA7035	PG21	47.5	11	13-18
50.029 PA7035	PG29	53	11	18-25
50.036 PA7035	PG36	61	13	22-32
50.042 PA7035	PG42	65	13	30-38
50.048 PA7035	PG48	67	14	34-44

Material: Nylon

Colour: Black RAL 9005

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.007 PA/SW	PG7	30.5	8	3-6.5
50.009 PA/SW	PG9	34	8	4-8
50.011 PA/SW	PG11	37	8	5-10
50.013 PA/SW	PG13.5	39	9	6-12
50.016 PA/SW	PG16	42.5	10	10-14
50.021 PA/SW	PG21	47.5	11	13-18
50.029 PA/SW	PG29	53	11	18-25
50.036 PA/SW	PG36	61	13	22-32
50.042 PA/SW	PG42	65	13	30-38
50.048 PA/SW	PG48	67	14	34-44

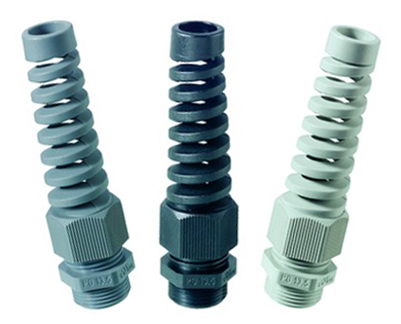

IP68 PERFECT NYLON CABLE GLANDS WITH SPIRAL TOP CABLE PROTECTORS

Features

Measurement: PG

Rated to IP68

Temperature Range of -20°C to +100°C

Quick & easy installation

No special tools needed

Material: Polyamide PA6 V-2

Colour: Grey RAL 7001

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.007 PA/BS	PG7	63	8	3-6.5
50.009 PA/BS	PG9	74	8	4-8
50.011 PA/BS	PG11	87	8	5-10
50.013 PA/BS	PG13.5	98	9	6-12
50.016 PA/BS	PG16	112	10	10-14
50.021 PA/BS	PG21	130	11	13-18

Material: Polyamide PA6 V-2

Colour: Grey RAL 7035

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.007 PA7035	PG7	63	8	3-6.5
50.009 PA7035	PG9	74	8	4-8
50.011 PA7035	PG11	87	8	5-10
50.013 PA7035	PG13.5	98	9	6-12
50.016 PA7035	PG16	112	10	10-14
50.021 PA7035	PG21	130	11	13-18

Material: Polyamide PA6 V-2

Colour: Black RAL 9005

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.007 PABSSW	PG7	63	8	3-6.5
50.009 PABSSW	PG9	74	8	4-8
50.011 PABSSW	PG11	87	8	5-10
50.013 PABSSW	PG13.5	98	9	6-12
50.016 PABSSW	PG16	112	10	10-14
50.021 PABSSW	PG21	130	11	13-18

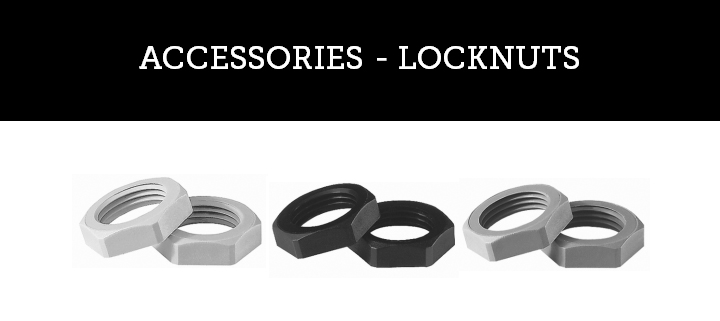

ACCESSORIES - LOCKNUTS

Features

Measurement: PG

Temperature Range of -20°C to +100°C

Material: PA6 GF30

Product Code			Size	H (mm)
Grey RAL 7001	Grey RAL 7035	Black RAL 9005
207 PA	207 PA7035	207 PA/SW	PG7	5.0
209 PA	209 PA7035	209 PA/SW	PG9	5.0
211 PA	211 PA7035	211 PA/SW	PG11	5.0
213 PA	213 PA7035	213 PA/SW	PG13.5	6.0
216 PA	216 PA7035	216 PA/SW	PG16	6.0
221 PA	221 PA7035	221 PA/SW	PG21	7.0
223 PA	223 PA7035	223 PA/SW	PG29	7.0
236 PA	236 PA7035	236 PA/SW	PG36	8.0
242 PA	242 PA7035	242 PA/SW	PG42	8.0
248 PA	248 PA7035	248 PA/SW	PG48	8.0

IP54 SCREW PLUGS

Features

Measurement: PG

IP Rating: IP65

Temperature Range of -30°C to +92°C

Material: PA6

Colour: Grey RAL 7035

Product Code	Size	L (mm)	H (mm)	Ø (mm)
1007 PA	PG7	10.0	6	15
1009 PA	PG9	10.0	6	19
1011 PA	PG11	10.0	6	22
1013 PA	PG13.5	10.0	6	25
1016 PA	PG16	10.0	6	27
1021 PA	PG21	12.5	8	33
1029 PA	PG29	13.0	8	44.5
1036 PA	PG36	15.0	10	55.5
1042 PA	PG42	15.5	10	62.5
1048 PA	PG48	17.0	12	69.5

MULTI-HOLE SEALING INSERTS

Suitable For

Perfect series 50.0xx

Perfect series 50.1xx

Features

Measurement: PG

Material: Evoprene TPE

Temperature Range of -30°C to +100°C

Product Code ^*	Size	L (mm)	H (mm)	ØC (mm)
WJ-D 9/3x2	PG9	7.5	3x2	10.6
WJ-D9/3x3.5	PG9	7.5	3x2.5	10.67
WJ-D11/2x5	PG11	8.5	2x5	13.3
WJ-D11/3x3	PG11	8.5	3x3	13.3
WJ-D11/3x4	PG11	8.5	3x4	13.3
WJ-D 13/2x5	PG13	8.5	2x5	15.3
WJ-D 13/2x6	PG13	8.5	2x6	15.3
WJ-D13/3x4	PG13	8.5	3x4	15.3
WJ-D16/3x6	PG16	9	3x6	17.4
WJ-D16/3x6.5	PG16	9	3.6.5	17.4
WJ-D16/3x7	PG16	9	3x7	17.4
WJ-D16/4x4	PG16	9	4x4	17.4
WJ-D21/3x7	PG21	11	3x7	22.2
WJ-D21/3x8	PG21	11	3x8	22.2
WJ-D21/4x5	PG21	11	4x5	22.2
WJ-D21/4x6.5	PG21	11	4x6.5	22.2
WJ-D29/6x5	PG29	13	6x5	29.8
WJ-D29/6x7.5	PG29	13	6x7.5	29.8

^* PG size/No. Holes x Hole size (mm)
