Hylec-APL
    TeeTube - TTK20BK-SD
    Weatherproof/Waterproof Connectors - TeeTube - TTK20BK-SD
    DESCRIPTION

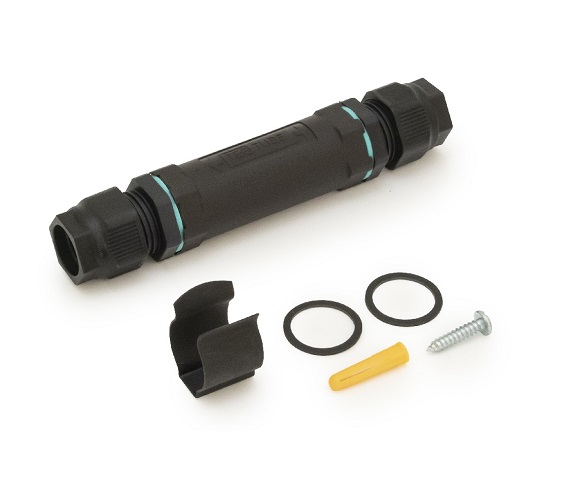

    TeeTube In-line 3 Pole Screw - end barrier contact 7mm to 13.5mm, 4 mm max conductor size IP68 32A 450V 2 cable entries

    Weatherproof/Waterproof Connectors - TeeTube - TTK20BK-SD
    Weatherproof/Waterproof Connectors - TeeTube - TTK20BK-SD
    Weatherproof/Waterproof Connectors - TeeTube - TTK20BK-SD
    EN Std ENEC03 RoHS S UKCA
    Further Product Information
    TEETUBE RANGE FEATURES
    • Tough, robust construction with large cable range acceptance
    • Straight through, T splitter and Y splitter versions available
    • Dual terminal versions available for easy fitting and looping of conductors (2+2 and 3+3 poles)
    • Temperature rating of –40°C to +125°C

    Features may vary by product throughout the range.

    SPECIFICATION
    TypeIn-line connector
    Cable Entries2
    Max Current (A)32
    Max Voltage (V)450
    Number of Poles3
    Max Conductor Size (Sq mm)4
    Minimum Cable Diameter (mm)7
    Maximum Cable Diameter (mm)13.5
    Tightening Torque of Cable Gland-Connector2.5 Nm
    IP Rating68
    Min Temperature Rating °C-40
    Max Temperature Rating °C125
    Body MaterialPA66 / TPE
