    Nickel Plated Brass Metric Cable Glands - GCG-BML-M20-NP/HYL01 (HYCGLM20LNPB)
    Cable Glands/Grommets - Nickel Plated Brass Metric Cable Glands - HYCGLM20LNPB
    DESCRIPTION

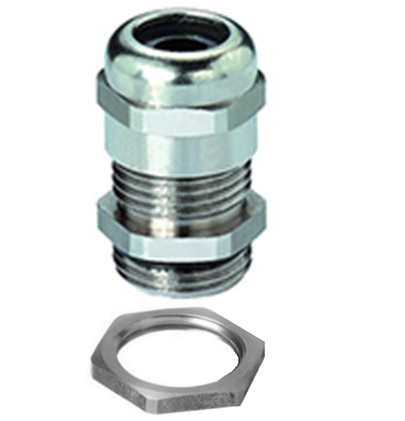

    Perfect cable gland long thread M20X1,5 thread length 10, min/max cable dia 9-13 with internal locknut fixing

    Quote Me Datasheet
    CAD Drawing Line Drawing Shop
    SEV - 8.0093 GL - 44 608 - 07 HH VDE - 40020901 C UL US CURUS - E140310 EN Std - EN 50014
    FEATURES
    • Easy to install
    • Up to IP 68 protection
    • Made From Nickel Plated Brass

    SPECIFICATION
    Additional Material DetailBody - Brass CuZn39Pb3 nickel plated, O-Ring - Nitrile rubber
    Product TypeStandard
    Body MaterialNickel Plated Brass
    Max Temperature Rating °C-20
    IP Rating68
    Thread SizeM20
    Clamping Range Min (mm)9
    Clamping Range Max (mm)13
    External Connecting Thread TypeMetric
    Thread Length (mm)10
    Height (mm)37.5
