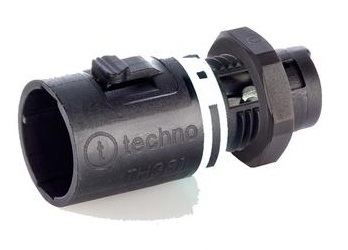

Micro TeePlug & Sockets - CWP-PMM-PB-03B (THB.381.L3A)
DESCRIPTION
Micro Plug M11 3 pole Screw terminal IP68/IP69K 10A 500V 1 cable entry
FEATURES
- Miniaturization - a diameter of only 14mm (3 poles)
- Screw connection for field wiring (M2 screws - max 0.2 Nm) and versatility guaranteed during installation
- Available with overmolded cable
- Tested and approved to resist dust and water (IP68 30m/1h) and high pressure water (IP69K)
- Suitable For Class 2 Applications (Double Insulated) Max. 250V AC.
SPECIFICATION
| Silver-plated brass (zinc-plated screws) | |
| Micro Chassis Plug | |
| 1 | |
| 10A AC/DC | |
| 500V AC (12V-60V DC ) | |
| 3 | |
| 68/68K | |
| -40 | |
| 125 | |
| PA66 GF UL94 V0 |
