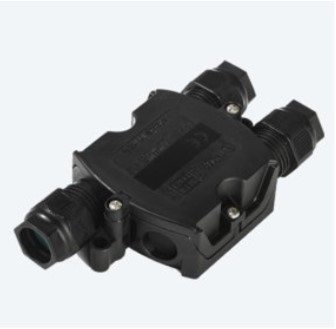

    TeeBox - THA.209.D1A
    Weatherproof/Waterproof Connectors Range - TeeBox - THA.209.D1A
    DESCRIPTION

    TeeBox 7mm to 14mm cable max IP68 rated Screw fixing 3 cable entries 16A

    CE STD RoHS NEMKO EN Std - EN60529:1991+A1:2000 EN60998-1:2004
    Further Product Information
    TEEBOX RANGE FEATURES
    • Comprehensive range of connection options
    • Protection rating up to IP68 depending on product
    • Unique 3 pole T connector TH029 available for use in TH209 & TH211 range, no cable forming required
    • TH211 available as full KIT version complete with TH029 fitted
    • Power distribution products available in 3 port (TH630) and 4 port (TH62) versions
    • Temperature range of –20°C to +125°C

    Features may vary by product throughout the range.

    SPECIFICATION
    Cable Entries3
    Body MaterialPA66 / SEBS/ TPE
    IP Rating68
    Max Current (A)16
    Minimum Temp Rating °C-40
    Max Temp Rating °C125
    Minimum Cable Diameter (mm)7
    Maximum Cable Diameter (mm)14
