    RetO Racks

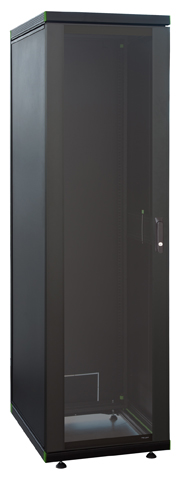

    Retex RetO A600 with GlassA600/W600/L600 (Flat-Pack)


    19” modular cabinets 600mm wide. For cabling, telecommunications, IT & industrial installations. Designed in accordance with IEC60 297-1, DIN41944 part 1 and 7, ANSI/EIA 310 D-E and UNE 20 539-2.

    The basic units include:

    • Inner freestanding structure.
    • Top & bottom side structure in aluminium profiles.
    • 4x19” profiles adjustable in depths, manufactured in 2mm steel.
    • Front door in safety glass, aluminium frame. Opening angle 190°.
    • Swing handle with 2 locking points.
    • Springswivel hinges system allowing a quick assembly/removal of the doors without tools.
    • Rear steel panel with quick latch locks and key and pre-punched cable entry.
    • Removable and sliding side panels. Can be removed when the Reto's are bayed together.
    • 2 x adjustable multifunction members (1 each side).
    • Top lid with ventilation areas, pre-punched cable entries and 1/4 turn locks.
    • Injected ABS corner lids (8 in RetO green RAL 6018. Black RAL9005 optional).
    • 4 adjustable levelling feet.
    • Distributed load capacity: 1.200 Kg (static).

    Finishes: Black (RAL9005) powder coating. Light Grey RAL7035 as an option.

    Delivery: Flat-Pack “All in one box”.

    SPECIFICATIONS

    Click on the colours below to see individual product details:

    Product U Standard Width Depth Height Front
    Glass
    Rear
    Panel
    Side
    Panels
    32360318 18 600 600 929
    32360318 18 600 800 929
    32360324 24 600 600 1196
    32360824 24 600 800 1196
    32360330 30 600 600 1462
    32360830 30 600 800 1462
    32360342 42 600 600 1996
    32360842 42 600 800 1996
    32360142 42 600 1000 1996
    32360847 47 600 800 2218
    32360147 47 600 1000 2218

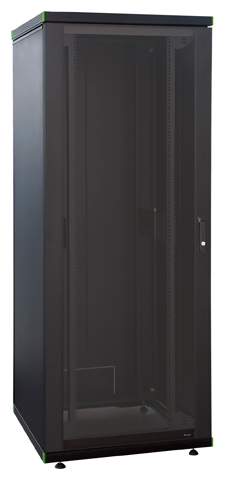

    Retex RetO A800 with GlassA800/W800/L800 (Flat-Pack)


    19” modular cabinets 800mm wide. For cabling, telecommunications, IT & industrial installations. Designed in accordance with IEC60 297-1, DIN41944 part 1 and 7, ANSI/EIA 310 D-E and UNE 20 539-2.

    The basic units include:

    • Inner freestanding structure.
    • Top & bottom side structure in aluminium profiles.
    • 4x19” profiles adjustable in depths, manufactured in 2mm steel.
    • Front door in safety glass, aluminium frame. Opening angle 190°.
    • Swing handle with 2 locking points.
    • Springswivel hinges system allowing a quick assembly/removal of the doors without tools.
    • Rear steel panel with quick latch locks and key and pre-punched cable entry.
    • Removable and sliding side panels. Can be removed when the Reto's are bayed together.
    • 2 x adjustable multifunction members (1 each side).
    • Top lid with ventilation areas, pre-punched cable entries and 1/4 turn locks.
    • Injected ABS corner lids (8 in RetO green RAL 6018. Black RAL9005 optional).
    • 4 adjustable levelling feet.
    • Distributed load capacity: 1.200 Kg (static).

    Finishes: Black (RAL9005) powder coating. Light Grey RAL7035 as an option.

    Delivery: Flat-Pack “All in one box”.

    SPECIFICATIONS

    Click on the product below to see individual product details:

    Product U Standard Width Depth Height Front
    Glass
    Rear
    Panel
    Side
    Panels
    32361330 30 800 600 1462
    32361830 30 800 800 1462
    32361342 42 800 600 1996
    32361842 42 800 800 1996
    32361142 42 800 1000 1996
    32361847 47 800 800 2218
    32361147 47 800 1000 2218

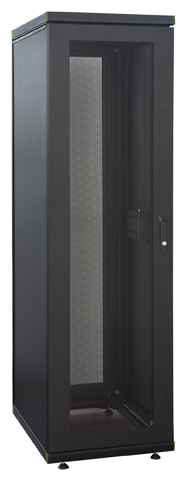

    Retex RetO A600 with MeshA600/W600/L600 (Flat-Pack)


    19” modular cabinets 600mm wide. For cabling, telecommunications, servers, IT & Datacenter installations. Designed in accordance with IEC60 297-1, DIN41944 part 1 and 7, ANSI/EIA 310 D-E and UNE 20 539-2.

    The basic units include:

    • Inner freestanding structure.
    • Top & bottom side structure in aluminium profiles.
    • 4x19”” profiles adjustables in depths, manufactured in 2mm steel”.
    • Front & rear mesh doors (80% vented area). Opening angle 190°.
    • Swing handle with 2 locking points.
    • Springswivel hinges system allowing a quick assembly/removal of the doors without tools.
    • Removable and sliding side panels. Can be removed when the Reto's are bayed together.
    • 2 x adjustable multifunction members (1 each side).
    • Top lid with ventilation areas, pre-punched cable entries and 1/4 turn locks.
    • Injected ABS corner lids (8 in RetO green RAL 6018. Black RAL9005 optional).
    • 4 adjustable levelling feet.
    • Distributed load capacity: 1.200 Kg (static).

    Finishes: Black (RAL9005) powder coating. Light Grey RAL7035 as an option.

    Delivery: Flat-Pack “All in one box”.

    SPECIFICATIONS

    Click on the product below to see individual product details:

    Product 19” U Standard Width Depth Height Front
    Mesh
    Rear
    Mesh
    Rear Double
    Mesh
    Side
    Panels
    32360424 24 600 1000 1196
    32360442 42 600 1000 1996
    32360542 42 600 1000 1996
    32360443 42 600 1200 1996
    32360543 42 600 1200 1996
    32360447 47 600 1000 2218
    32360547 47 600 1000 2218
    32360448 47 600 1200 2218
    32360548 47 600 1200 2218

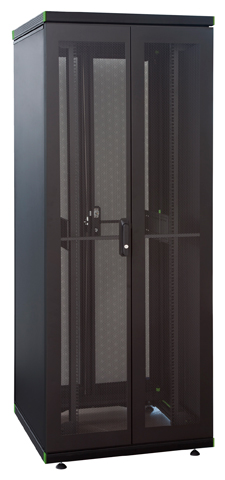

    Retex RetO A800 with MeshA800/W800/L800 (Flat Pack) Mesh Doors


    19” modular cabinets 800 mm wide. For cabling, telecommunications, servers, IT & Datacenter installations. Designed in accordance with IEC60 297-1, DIN41944 part 1 and 7, ANSI/EIA 310 D-E and UNE 20 539-2.

    The basic units include:

    • Inner freestanding structure.
    • Top & bottom side structure in aluminium profiles.
    • 4x19”” profiles adjustables in depths, manufactured in 2mm steel”.
    • Front & rear mesh doors (80% vented area). Opening angle 190°.
    • Swing handle with 2 locking points.
    • Springswivel hinges system allowing a quick assembly/removal of the doors without tools.
    • Removable and sliding side panels. Can be removed when the Reto's are bayed together.
    • 2 x adjustable multifunction members (1 each side).
    • Top lid with ventilation areas, pre-punched cable entries and 1/4 turn locks.
    • Injected ABS corner lids (8 in RetO green RAL 6018. Black RAL9005 optional).
    • 4 adjustable levelling feet.
    • Distributed load capacity: 1.200 Kg (static).

    Finishes: Black (RAL9005) powder coating. Light Grey RAL7035 as an option.

    Delivery: Flat-Pack “All in one box”.

    SPECIFICATIONS

    Click on the product below to see individual product details:

    Product 19” U Standard Width Depth Height Front
    Mesh
    Rear
    Mesh
    Rear Double
    Mesh
    Side
    Panels
    32361442 42 800 800 1996
    32361443 42 800 1000 1996
    32361542 42 800 1000 1996
    32361444 42 800 1200 1996
    32361543 42 800 1200 1996
    32361445 47 800 800 1996
    32361446 47 800 1000 2218
    32361544 47 800 1000 1996
    32361447 47 800 1200 1996
    32361548 47 800 1200 1996

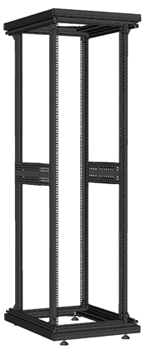

    Retex RetO A600/A800 FrameFrame (Flat-Pack)


    19” modular structures 600/800 mm wide. For cabling, telecommunications, servers, IT & Datacenter installations. Designed in accordance with IEC60 297-1, DIN41944 part 1 and 7, ANSI/EIA 310 D-E and UNE 20 539-2.

    The basic units include:

    • Inner freestanding structure.
    • Top & bottom side structure in aluminium profiles.
    • 4x19” profiles adjustables in depths, manufactured in 2mm steel.
    • 2 x adjustable multifunction members (1 each side).
    • Top lid with ventilation areas, pre-punched cable entries and 1/4 turn locks.
    • Injected ABS corner lids (8 in RetO green RAL 6018. Black RAL9005 optional).
    • 4 adjustable levelling feet.

    Distributed load capacity: 1.200 Kg (static).

    Finishes: Black (RAL9005) podwer coating. Light Grey RAL7035 as an option.

    Delivery: Flat-Pack “All in one box”.

    SPECIFICATIONS

    Click on the product below to see individual product details:

    Product 19” U Standard Width Depth Height
    32360742 42 600 600 1996
    32360743 42 600 1000 1996
    32360747 47 600 1000 2218
    32361742 42 800 800 1996
    32361743 42 800 1000 1996
    32361744 47 800 1000 2218
