    IP68 TeetubesThe TeeTube family groups connecting solutions, having high level protection, of the linear type with metal inserts (up to IP68 at 2bar/5bar). The Mini TeeTube family is able to provide, thanks to its reduced dimensions, a protected installation in very small spaces maintaining the same characteristics of the larger versions.

    FEATURES

    • Tough, robust construction with large cable range acceptance.
    • Available with 2 body styles.
    • Straight through, T splitter and Y splitter versions available.
    • Dual terminal versions available for easy fitting and looping of conductors (2+2 and 3+3 poles).
    • Temperature rating of -40° to +125°.
    • Microsized connectors including chassis mount options now available in 2-4 pole.

    SPECIFICATIONS

    Click on the product codes below to see individual product details:

    Standard Series, 32A max current with 4mm2 max conductor size

    Product Code IP Rating Poles Colour Material Cable Entries Insert Type W
    (mm)
    Ø
    (mm)
    L
    (mm)
    Min-Max Cable
    Diameter (mm)
    TTK20BK-SD 68 to 5 Bar 3 Black Nylon 66 2 Barrier N/A 26.5 115 5-13
    TTK20GY-SD Grey
    TTK20CR-BK Clear
    TTK25BK-SD Black 32 130 8-17
    TTK25GY-SD Grey



    TH390 Miniature Series, 32A max current with 4mm2 max conductor size

    Product Code IP Rating Connector Type Poles Colour Material Cable Entries Insert Type W
    (mm)
    Ø
    (mm)
    L
    (mm)
    Min-Max Cable
    Diameter (mm)
    THB.390.A1B 68 In-line 2 Black Nylon 66 2 Barrier N/A 30 82 7-13.5
    THB.390.A1A 3
    THB.390.C1B Cable Splitter 2 3 92 30 73
    THB.390.C1A 3



    TH391 Micro Teetube, 4mm2 max conductor size, 7-12mm Min-Max Cable Diameter

    Product Code IP Rating Connector Type Poles Colour Material Cable Entries Insert Type Ø
    (mm)
    L
    (mm)
    Max Current
    (A)
    THB.391.A2A 68 to 1 Bar Iniline 2 Black Nylon 66 2 Barrier 23 68 32
    THB.391.A3A 68 to 1 Bar 3 Barrier 23 68
    THB.391.A4A 68 to 1 Bar 4 Barrier 23 68
    THB.391.L2A 68 Through Chassis 2 Black/Green
    (seals)
    PA66/TPE Barrier     17.5
    THB.391.L3A 68 3 Barrier
    THB.391.L4A 68 4 Barrier
    THB.391.R4A 68 Iniline XDry Anti Condensation
    4 Barrier
    THB.391.T4A 68 Chassis Mount XDry Anti Condensation 4 Barrier



    TH399 Long Series, Y Style Cable Splitter/Connector, 32A max current with 4mm2 max conductor size

    Product Code IP Rating Poles Colour Material Cable Entries Insert Type W
    (mm)
    Ø
    (mm)
    L
    (mm)
    Min-Max Cable
    Diameter (mm)
    THB.399.A3A 68 3 Black Nylon 66 3 Barrier 63 33 180 17-13.5*
    THB.399.A5A 5
    THB.399.A6A 6
    THB.399.A9B 3+3 Through
    THB.399.D3A 3 Barrier 8/17**
    THB.399.D5A 5
    THB.399.D6A 6
    THB.399.D9B 3+3 Through

    * Was 5mm minimum, but now use accessory 6000087LF for cable Ø less than 7mm
    ** Was 5mm minimum, but now use accessory 6000087LF for cable Ø less than 8mm



    TH399 Short Series, Miniature Y Style Cable Splitter/Connector, 32A max current with 2.5mm2 max conductor size

    Product Code IP Rating Poles Colour Material Cable Entries Insert Type W
    (mm)
    Ø
    (mm)
    L
    (mm)
    Min-Max Cable
    Diameter (mm)
    THB.399.E3A 68 3 Black Nylon 66 3 Barrier 63 33 125 7-13.5

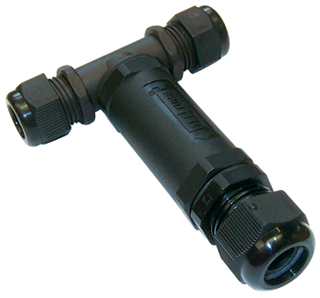

    THB.402 Series, T Style Cable Splitter/Connector long tube, 32A max current with 4mm2 max conductor size

    Product Code IP Rating Poles Colour Material Cable Entries Insert Type W
    (mm)
    Ø
    (mm)
    L
    (mm)
    Min-Max Cable
    Diameter (mm)
    THB.402.C1B 68 3 Black Nylon 66 3 Barrier 92 26  121 7-13.5
    THB.402.C1A 3
    THB.402.C2E 3+3 Through
    THB.402.D1F 5 Barrier 26/32 7-13.5 (2)/8-17(1)
    THB.402.D1G 6
    THB.402.D2E 3+3 Through
    THB.402 Series
