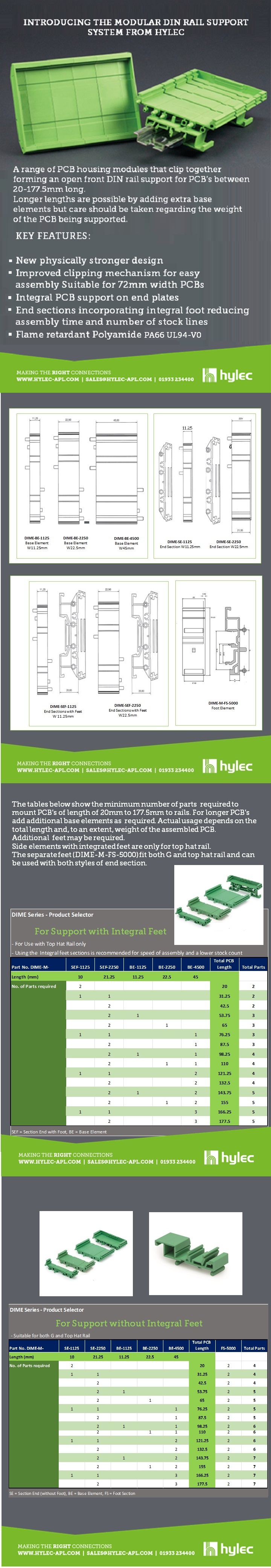

    Modular DIN Rail Supports

    DIN Rail SupportsDIN Rail 72mm Supports


    A range of PCB housing modules that clip together forming an open front DIN rail support for PCB’s between 20-177.5mm long. Longer lengths are possible by adding extra base elements but care should be taken regarding the weight of the PCB being supported.

    Side elements with integrated feet are only for top hat rail. The separate feet (DIME/M/FE0000SS) fit both G and top hat rail.

    Key features:

    • Suitable for 72mm width PCB’s
    • Modular construction for easy assembly
    • Snap-fit DIN Rail mounting fixtures
    • Flame retardent green Polyamide 66 UL 94V0
    • DIME/M SERIES
    • Terminal blocks available in same colour
    • Integral marker facility
    • Registered Design No: 2106418
    • Also available in different colours

    The table below shows the minimum number of parts required to mount PCB’s of length of 20mm to 177.5mm to rails. For longer PCB’s add additional base elements as required. Actual usuage depends on the total length and, to an extent, weight of the assembled PCB. Additional feet may be required.

    Side elements with integrated feet are only for top hat rail. The separate feet (DIME/M/FE0000SS) fit both G and top hat rail and can be used with both styles of end section.

    DIN Rail Support DIMEM Series

    Click on the Product Codes below to view the products:

    DIME-M- SE1225 SE2250 SEF1125 SEF2250 BE1125 BE2250 BE4500 TOTAL PCB
    MM LENGTH
    NUMBER
    OF PARTS
    PCB Length 11.25 21 10 21.25 11.25 22.5 45
          2         20.00 2
          1 1       31.25 2
            2       42.50 2
            2 1     53.75 3
            2   1   65.00 3
          1 1     1 76.25 3
            2     1 87.50 3
            2 1   1 98.75 4
            2   1 1 110.00 4
          1 1     2 121.25 4
            2     2 132.50 4
            2 1   2 143.75 5
            2   1 2 155.00 5
          1 1     3 166.25 5
            2     3 177.50 5

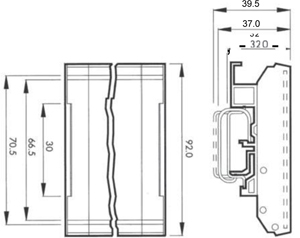

    DIN Rail Support DIMEM Series Line Drawing
